Groups - CometChat Docs

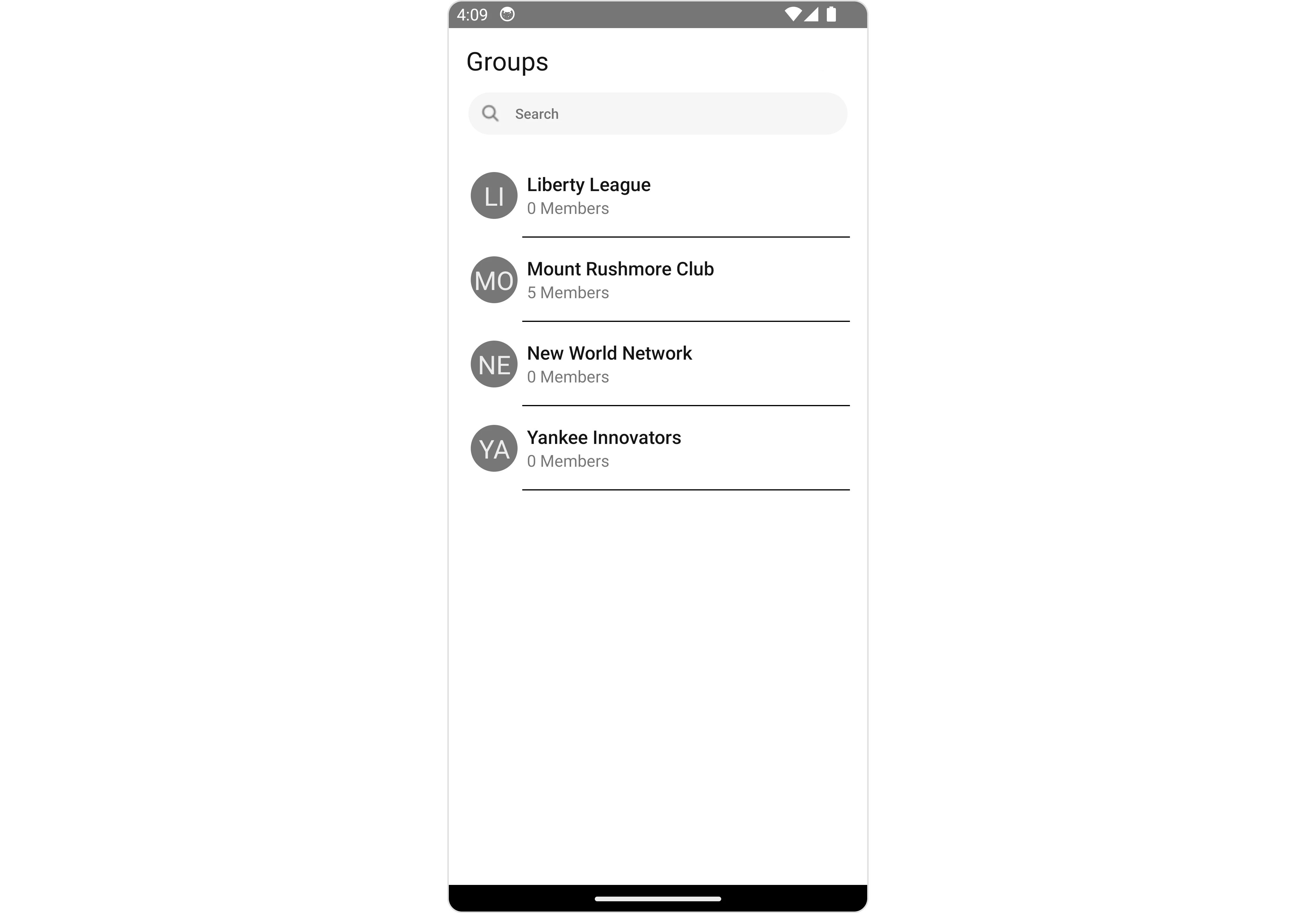

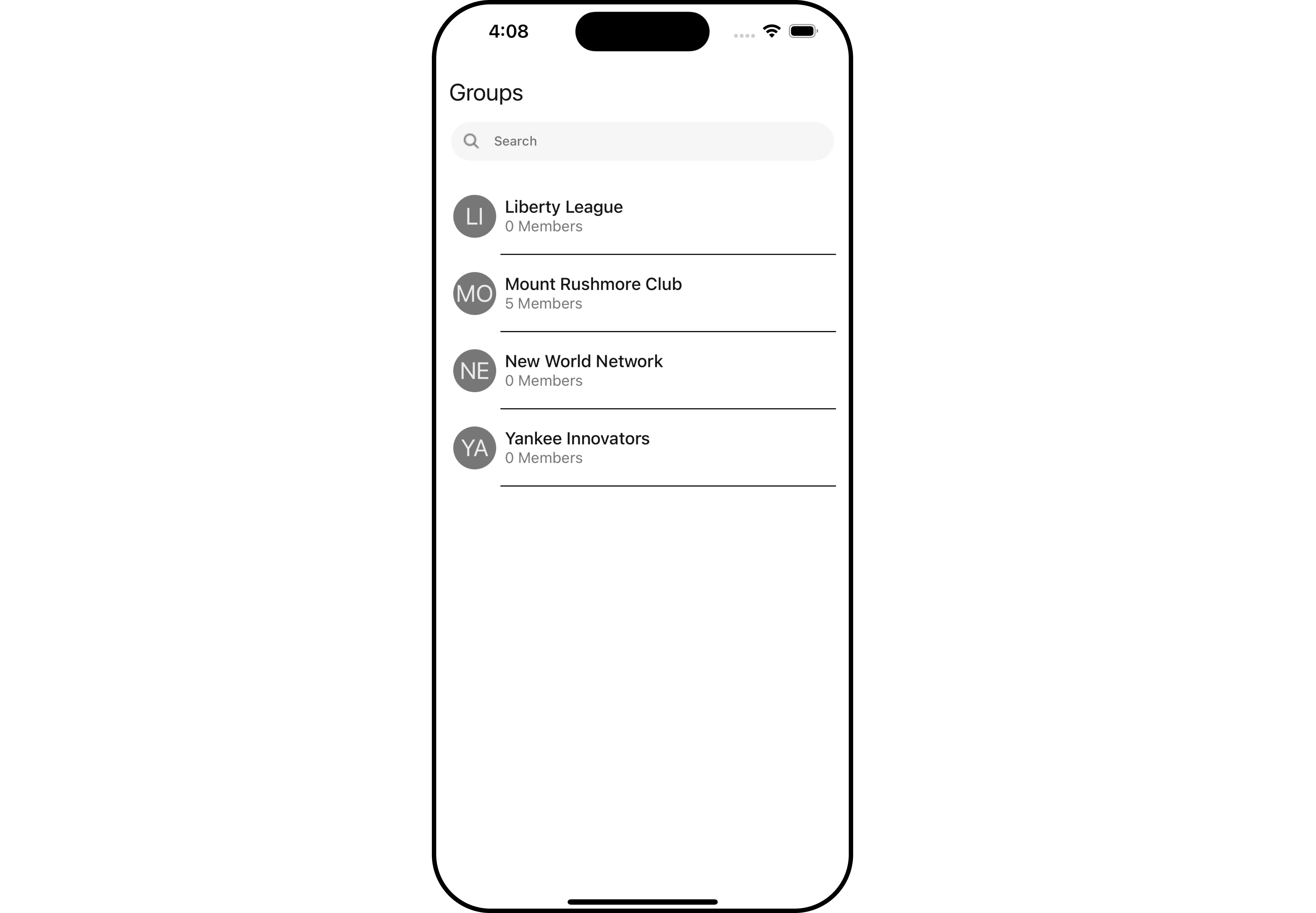

The Groups is a Component, showcasing an accessible list of all available groups. It provides an integral search functionality, allowing you to locate any specific groups swiftly and easily. For each group listed, the group name is displayed by default, in conjunction with the group icon when available. Additionally, it provides a useful feature by displaying the number of members in each group as a subtitle, offering valuable context about group size and activity level.

The Groups component is composed of the following BaseComponents:

Components	Description
CometChatList	a reusable container component having title, search box, customisable background and a List View
ListItem	a component that renders data obtained from a User object on a Tile having a title, subtitle, leading and trailing view

Usage

Integration

The following code snippet illustrates how you can directly incorporate the Groups component into your App.tsx file.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatGroups } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  return <CometChatGroups />;
}

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

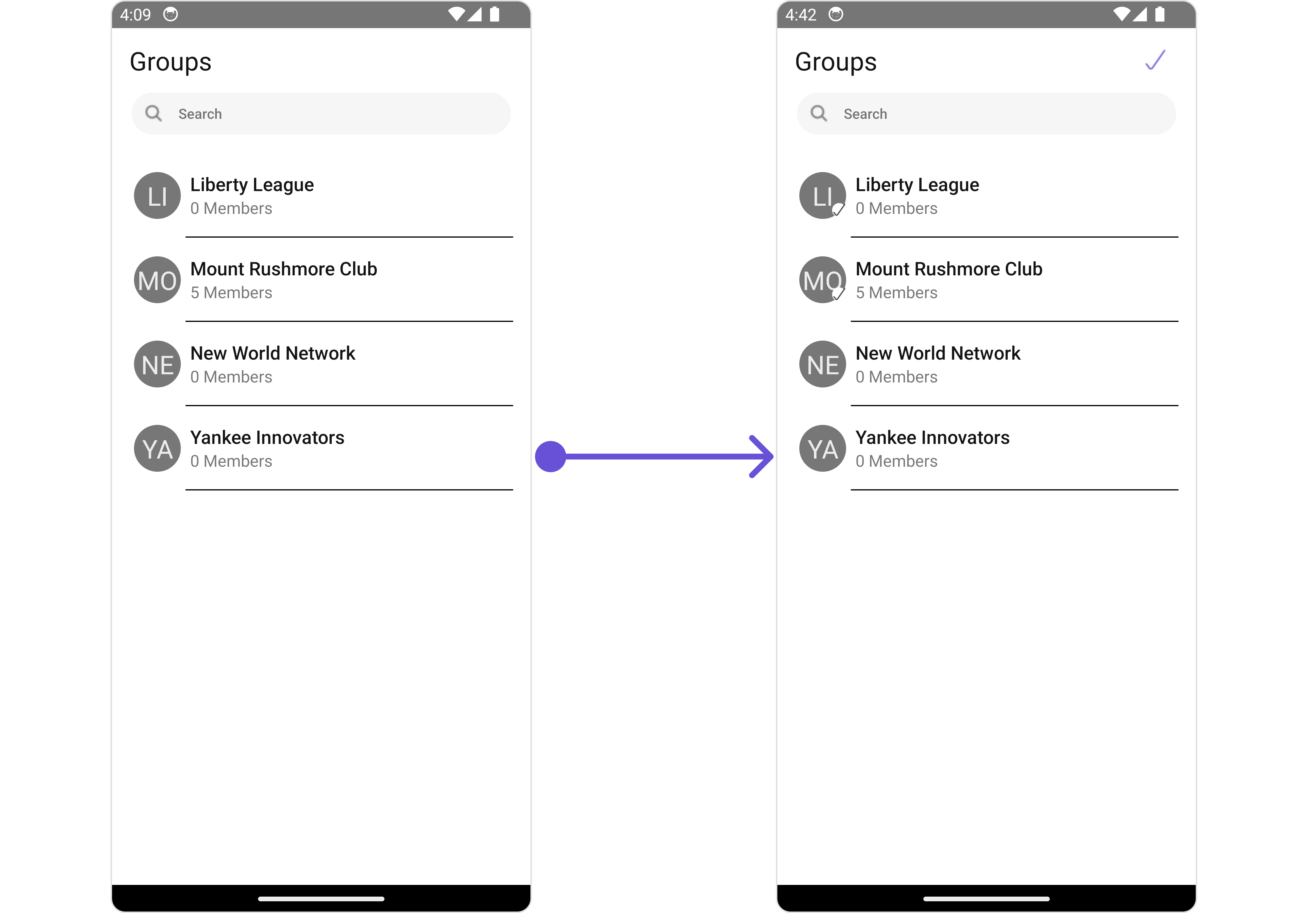

1. onSelection

The onSelection event is activated when you select the done icon in the AppBar while in selection mode. This returns a list of all the Groups that you have selected. This action does not come with any predefined behavior. However, you have the flexibility to override this event and tailor it to suit your needs using the following code snippet.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatGroups } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const onSelectionHandler = (list: CometChat.Group[]) => {
    //code
  };

  return (
    <CometChatGroups
      onSelection={onSelectionHandler}
      selectionMode="multiple"
    />
  );
}

2. onItemPress

The onItemPress event is activated when you press on the Group item. This action does not come with any predefined behavior. However, you have the flexibility to override this event and tailor it to suit your needs using the following code snippet.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatGroups } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const onItemPresshandler = (user: CometChat.User) => {
    //code
  };

  return (
    <CometChatGroups selectionMode="none" onItemPress={onItemPresshandler} />
  );
}

3. onItemLongPress

The onItemLongPress event is activated when you Long Press on the Group item. This action does not come with any predefined behavior. However, you have the flexibility to override this event and tailor it to suit your needs using the following code snippet.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatGroups } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const onItemLongPresshandler = (group: CometChat.Group) => {
    //code
  };

  return (
    <CometChatGroups
      selectionMode={"none"}
      onItemLongPress={onItemLongPresshandler}
    />
  );
}

4. onBack

The onBack function is built to respond when you press the back button in the AppBar. The back button is only displayed when the prop showBackButton is set to true. By default, this action does not have a predefined behavior. However, you have the flexibility to override this event and tailor it to suit your needs using the following code snippet.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatGroups } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const onBackHandler = () => {
    //code
  };

  return <CometChatGroups showBackButton={true} onBack={onBackHandler} />;
}

5. onError

This action doesn’t change the behavior of the component but rather listens for any errors that occur in the Groups component.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatGroups } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const onErrorHandler = (error: CometChat.CometChatException) => {
    //code
  };

  return <CometChatGroups onError={onErrorHandler} />;
}

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

1. GroupsRequestBuilder

The GroupsRequestBuilder enables you to filter and customize the group list based on available parameters in GroupsRequestBuilder. This feature allows you to create more specific and targeted queries when fetching groups. The following are the parameters available in GroupsRequestBuilder

Methods	Type	Description
setLimit	number	sets the number groups that can be fetched in a single request, suitable for pagination
setSearchKeyword	string	used for fetching groups matching the passed string
joinedOnly	boolean	to fetch only joined groups
friendsOnly	boolean	used for fetching only those users in which logged in user is a member
setTags	Array<string>	used for fetching groups containing the passed tags
withTags	boolean	used to fetch tags data along with the list of groups

Example In the example below, we are applying a filter to the Group List based on only joined groups and setting the limit to ten.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatGroups } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const groupsRequestBuilder = new CometChat.GroupsRequestBuilder()
    .setLimit(10)
    .joinedOnly(true);

  return (
    <CometChatGroups
      selectionMode="none"
      groupsRequestBuilder={groupsRequestBuilder}
    />
  );
}

2. SearchRequestBuilder

The SearchRequestBuilder uses GroupsRequestBuilder enables you to filter and customize the search list based on available parameters in GroupsRequestBuilder. Example

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatGroups } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const searchRequestBuilder = new CometChat.GroupsRequestBuilder()
    .setLimit(10)
    .setSearchKeyword("custom-keyword");

  return (
    <CometChatGroups
      selectionMode="none"
      searchRequestBuilder={searchRequestBuilder}
    />
  );
}

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. To handle events supported by Groups you have to add corresponding listeners by using CometChatGroupEvents. The Groups component does not produce any events directly.

Customization

To fit your app’s design requirements, you can customize the appearance of the conversation component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

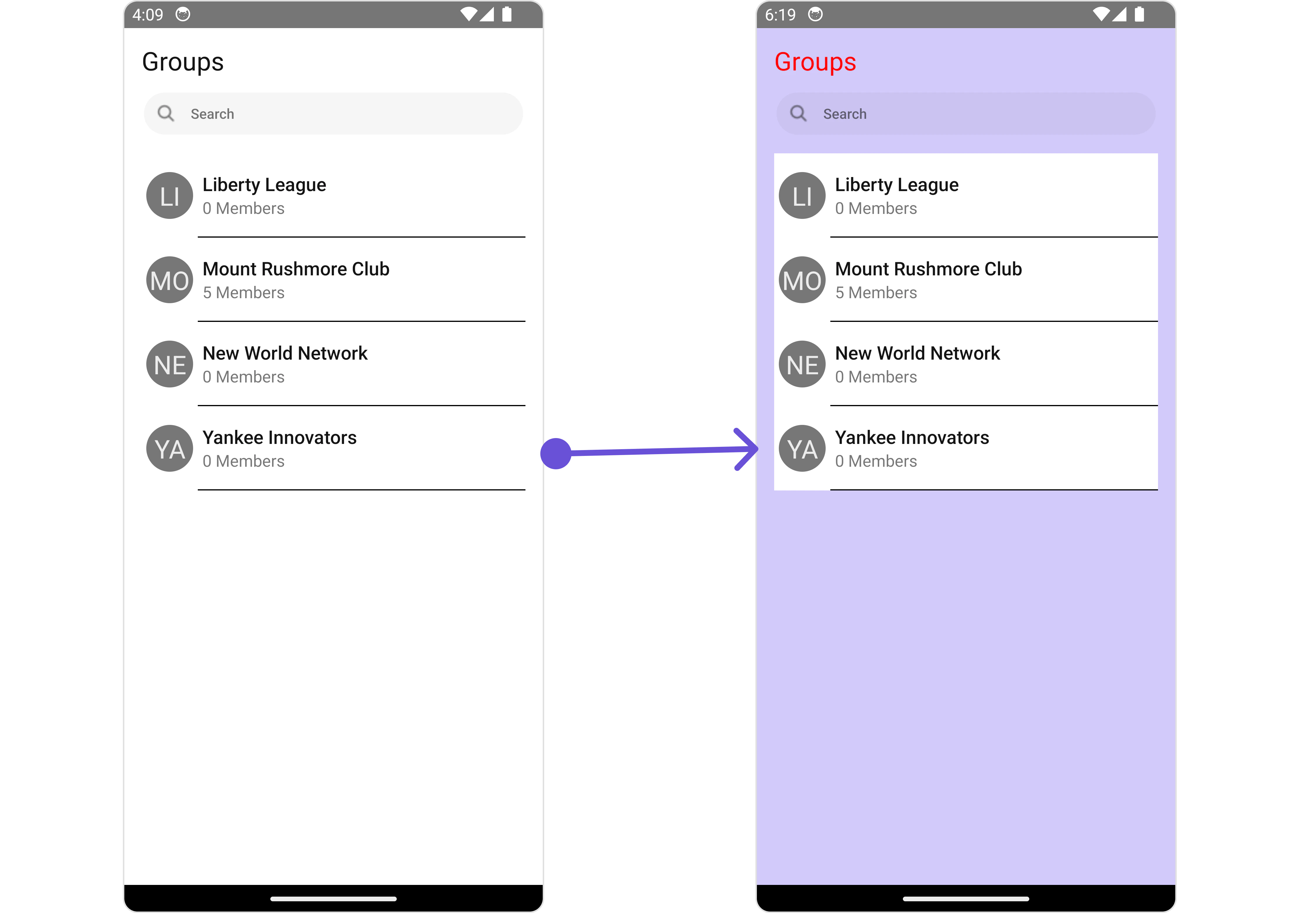

1. Groups Style

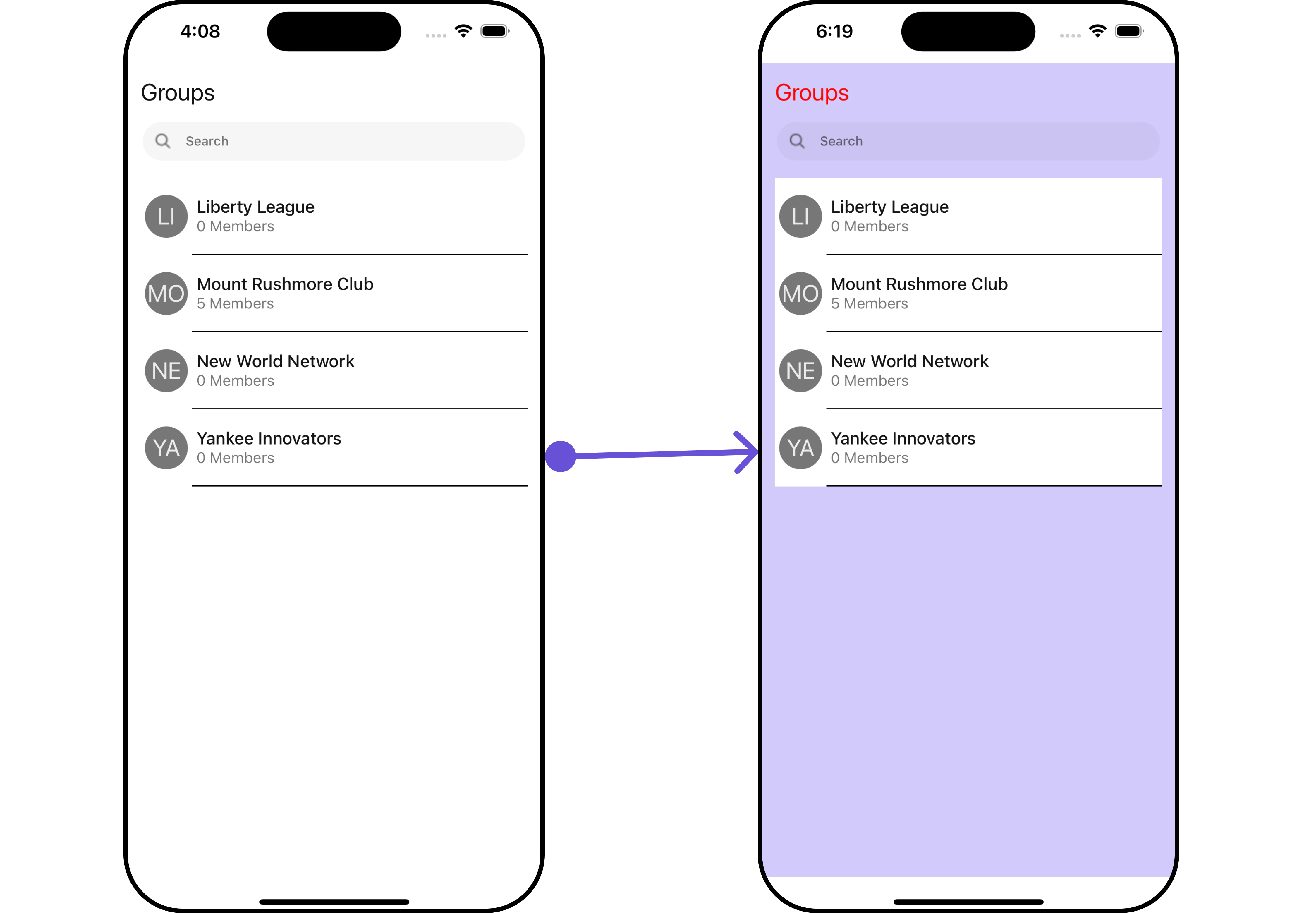

You can set the GroupsStyle to the Groups Component to customize the styling.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
  CometChatGroups,
  GroupsStyleInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const groupsStyle: GroupsStyleInterface = {
    titleColor: "red",
    backgroundColor: "#d2cafa",
  };

  return <CometChatGroups groupsStyle={groupsStyle} />;
}

List of properties exposed by GroupsStyle

Property	Description	Code
border	Used to set border	`border?: BorderStyleInterface,`
borderRadius	Used to set border radius	`borderRadius?: number;`
backgroundColor	Used to set background colour	`background?: string;`
height	Used to set height	`height?: number` \| `string;`
width	Used to set width	`width?: number` \| `string;`
titleFont	Used to customise the font of the title in the app bar	`titleFont?: FontStyleInterface;`
titleColor	Used to customise the color of the title in the app bar	`titleColor?: string;`
backIconTint	Used to set the tint for the back button	`backIconTint?: string`
searchBorder	Used to set search box border	`searchBorder?: BorderStyleInterface,`
searchBorderRadius	Used to set search box border radius	`searchBorderRadius?: number;`
searchBackgroundColor	Used to set search box background colour	`searchBackgroundColor?: string;`
searchTextFont	Used to customise the font of the search box in the app bar	`searchTextFont?: FontStyleInterface;`
searchTextColor	Used to customise the color of the search box in the app bar	`searchTextColor?: string;`
searchPlaceholderTextColor	Used to set the color of the placeholder text in the search box	`searchPlaceholderTextColor?: string;`
searchIconTint	Used to set the tint for the search icon tint	`searchIconTint?: string`
emptyTextColor	Used to empty state text color	`emptyTextColor?: string`
emptyTextFont	Used to empty state text font	`emptyTextFont?: FontStyleInterface`
errorTextColor	Used to set the font style of the response text shown in case some error occurs while fetching the list of users	`errorTextColor?: string;`
errorTextFont	Used to set the font style of the response text shown in case some error occurs while fetching the list of users	`errorTextFont?: FontStyleInterface;`
subtitleTextColor	Used to set the color for group item subtitle	`subtitleTextColor?: string;`
subtitleTextFont	Used to set the font style for group item subtitle	`subtitleTextFont?: FontStyleInterface;`
separatorColor	Used to set the color of the divider separating the group member items	`separatorColor?: string;`
loadingIconTint	Used to set the color of the icon shown while the list of users is being fetched	`loadingIconTint?: string;`
privateGroupIconBackground	Sets background image of private group Icon	`privateGroupIconBackground?: ImageType;`
passwordGroupIconBackground	Sets background image of protected group Icon	`passwordGroupIconBackground?: ImageType;`

2. Avatar Style

To apply customized styles to the Avatar component in the Groups Component, you can use the following code snippet. For further insights on Avatar Styles refer

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
  CometChatGroups,
  AvatarStyleInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const avatarStyle: AvatarStyleInterface = {
    outerViewSpacing: 5,
    outerView: {
      borderWidth: 2,
      borderStyle: "dotted",
      borderColor: "blue",
    },
    border: borderStyle,
  };

  return <CometChatGroups avatarStyle={avatarStyle} />;
}

3. StatusIndicator Style

To apply customized styles to the Status Indicator component in the Groups Component, You can use the following code snippet. For further insights on Status Indicator Styles refer

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
  CometChatGroups,
  StatusIndicatorStyleInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const statusIndicatorStyle: StatusIndicatorStyleInterface = {
    backgroundColor: "grey",
  };

  return <CometChatGroups statusIndicatorStyle={statusIndicatorStyle} />;
}

3. LisItem Style

To apply customized styles to the List Item component in the Groups Component, you can use the following code snippet. For further insights on List Item Styles refer

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
  CometChatGroups,
  ListItemStyleInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const listItemStyle: ListItemStyleInterface = {
    titleColor: "red",
    backgroundColor: "#e4e1f0",
  };

  return <CometChatGroups listItemStyle={listItemStyle} />;
}

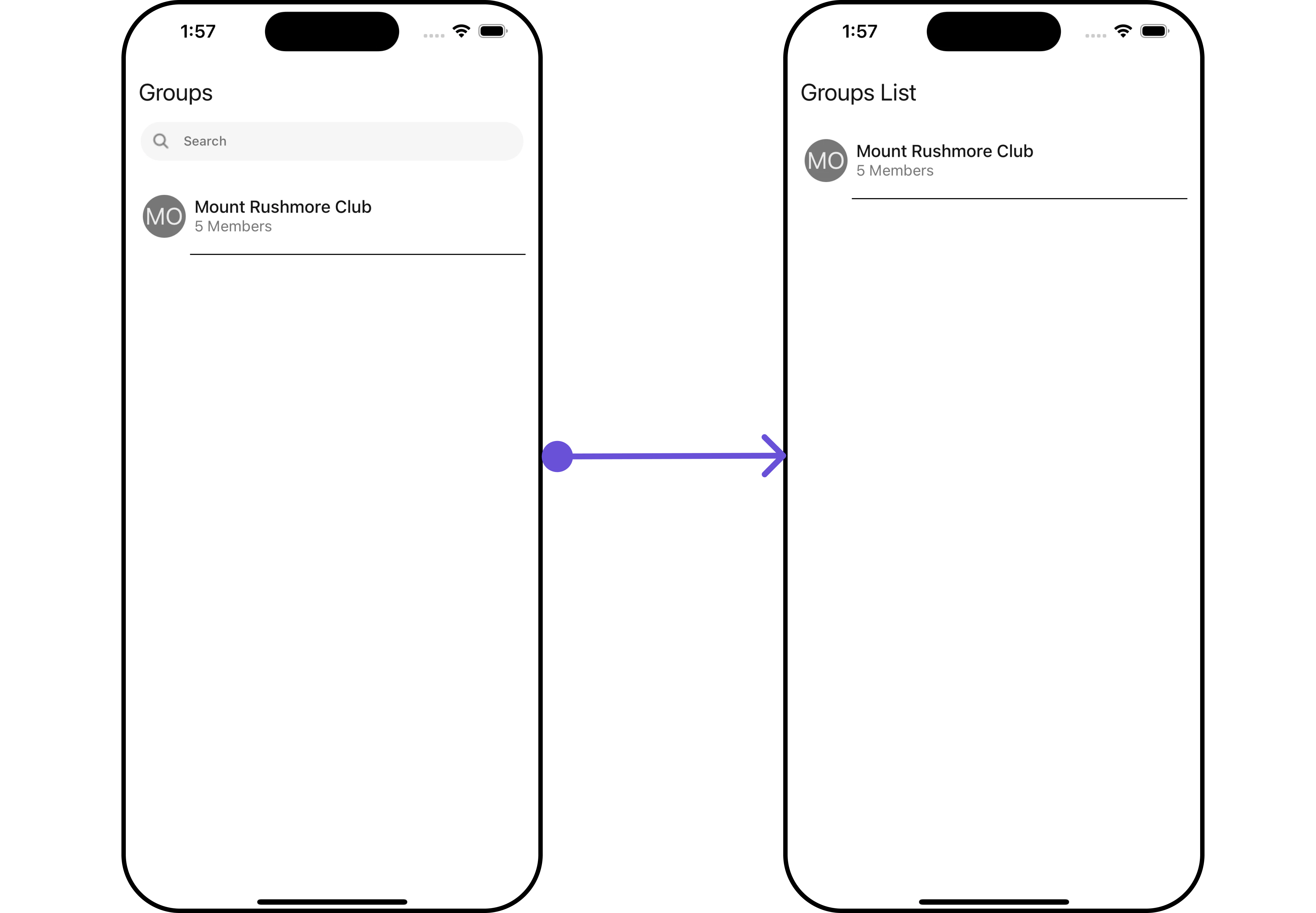

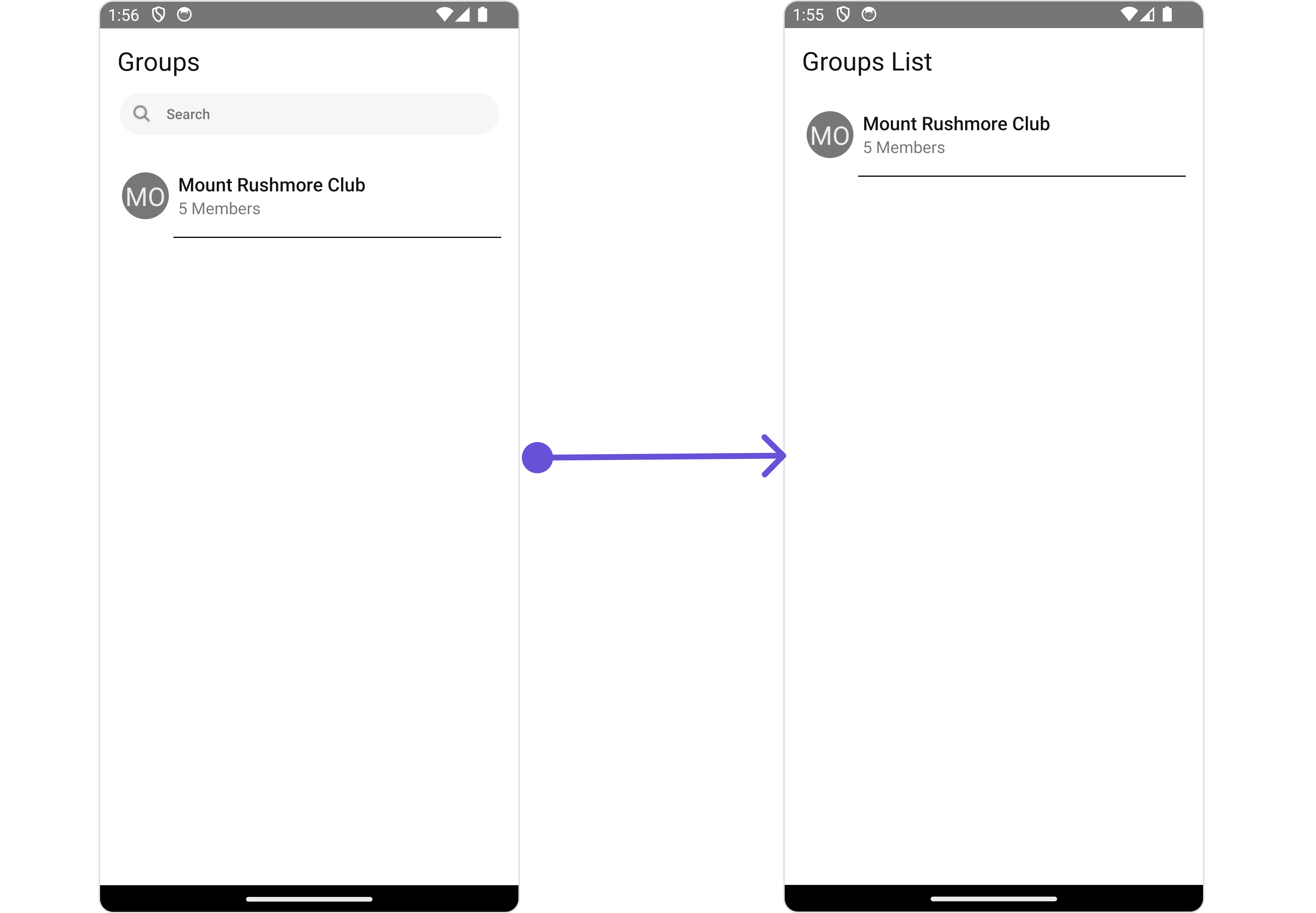

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatGroups } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  return <CometChatGroups title="Groups List" hideSearch={true} />;
}

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
title	Used to set title in the app bar	`title?: string`
searchPlaceholderText	Used to set search placeholder text	`searchPlaceHolderText?: string`
errorStateText	Used to set a custom text response when some error occurs on fetching the list of groups	`errorStateText?: string`
emptyStateText	Used to set a custom text response when fetching the groups has returned an empty list	`emptyStateText?: string`
searchBoxIcon	Used to set search Icon in the search field	`searchBoxIcon?: ImageType`
privateGroupIcon	Used to set the private group Icon	`privateGroupIcon?: ImageType`
passwordGroupIcon	Used to set the protected group Icon	`passwordGroupIcon?: ImageType`
hideSearch	Used to toggle visibility for search box	`hideSearch?: boolean`
hideError	Used to hide error on fetching groups	`hideError?: boolean`
hideSeperator	Used to hide the divider separating the group items	`hideSeperator?: boolean`
selectionMode	set the number of groups that can be selected, SelectionMode can be single, multiple or none.	`selectionMode? SelectionMode`
hideSubmitIcon	Used to hide the selection submit icon	`hideSubmitIcon?: boolean`
backButtonIcon	Used to set the back button icon	`backButtonIcon?: ImageType`
showBackButton	Used to hide or show the back button	`showBackButton?: boolean`

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

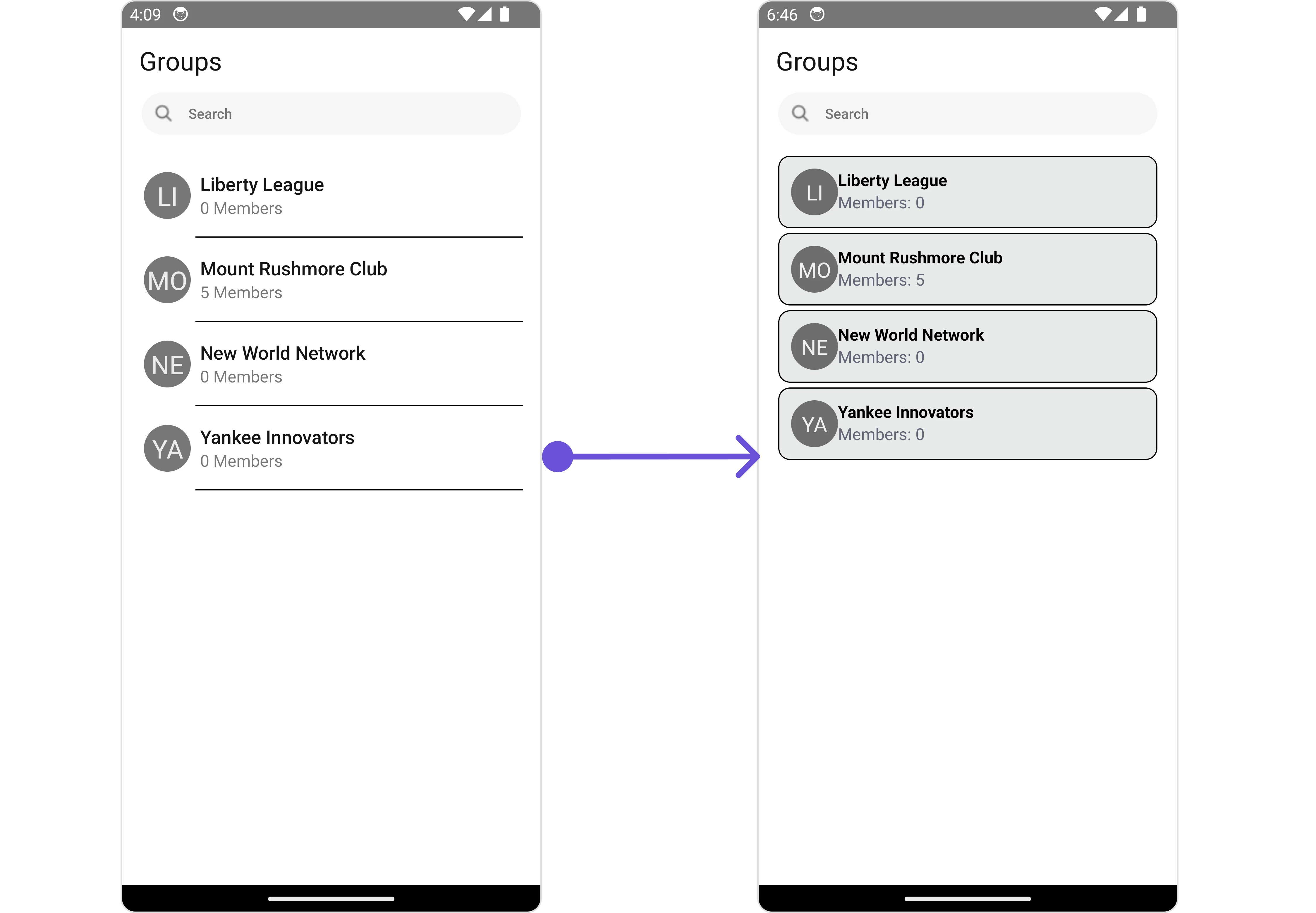

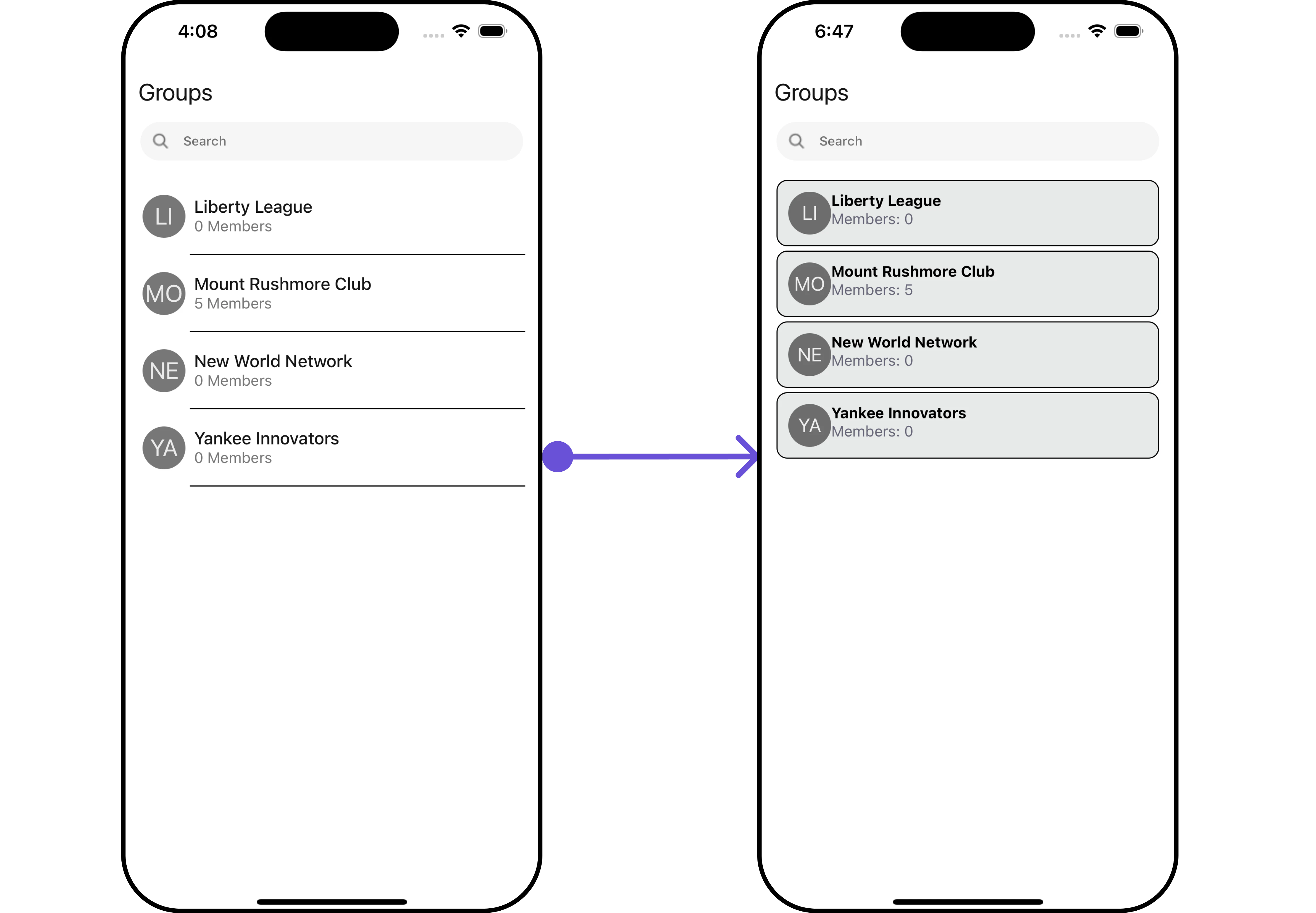

ListItemView

With this property, you can assign a custom ListItem to the Groups Component.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatGroups } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const viewStyle: StyleProp<ViewStyle> = {
    flex: 1,
    flexDirection: "row",
    alignItems: "flex-start",
    padding: 10,
    borderColor: "black",
    borderWidth: 1,
    backgroundColor: "#E8EAE9",
    borderRadius: 10,
    margin: 2,
  };

  const getListItemView = (group: CometChat.Group) => {
    return (
      <View style={viewStyle}>
        <CometChatAvatar
          image={group.getIcon() ? { uri: group.getIcon() } : undefined}
          name={group.getName()}
        />

        <View>
          <Text style={{ color: "black", fontWeight: "bold" }}>
            {group.getName()}
          </Text>
          <Text style={{ color: "#667" }}>
            Members: {group.getMembersCount()}
          </Text>
        </View>
      </View>
    );
  };

  return <CometChatGroups ListItemView={getListItemView} />;
}

Example

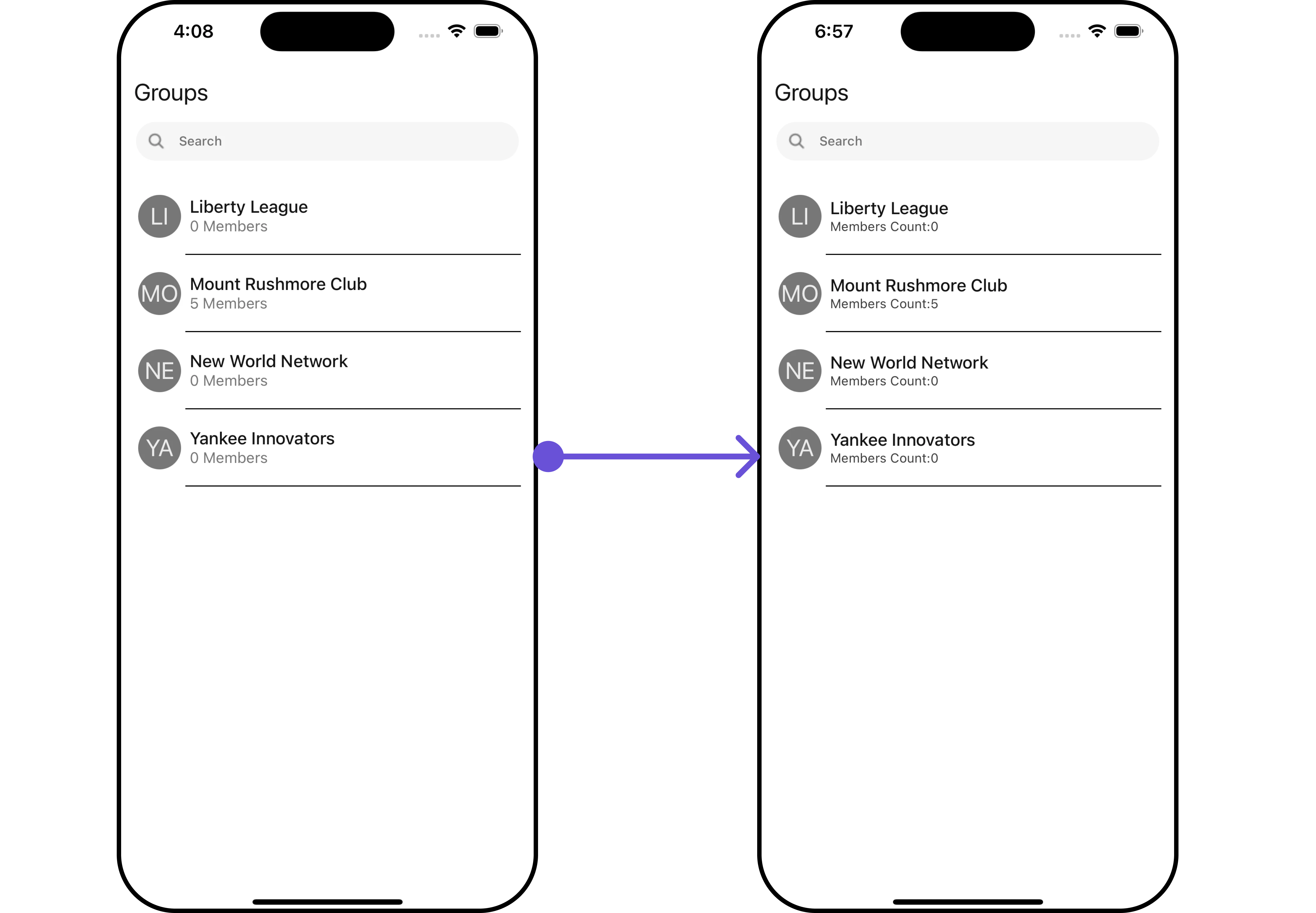

SubtitleView

You can customize the subtitle view for each group item to meet your requirements


import {CometChat} from '@cometchat/chat-sdk-react-native';
import { CometChatGroups } from '@cometchat/chat-uikit-react-native';

function App(): React.JSX.Element {

const getSubtitleView = (group: CometChat.Group) => {
return (
<Text
style={{
      fontSize: 12,
      color: theme.palette.getAccent800(),
    }}>
Members Count:
{group?.getMembersCount()}
</Text>
);
}

return (
<CometChatGroups
      SubtitleView={getSubtitleView}
  />
);
}

Example

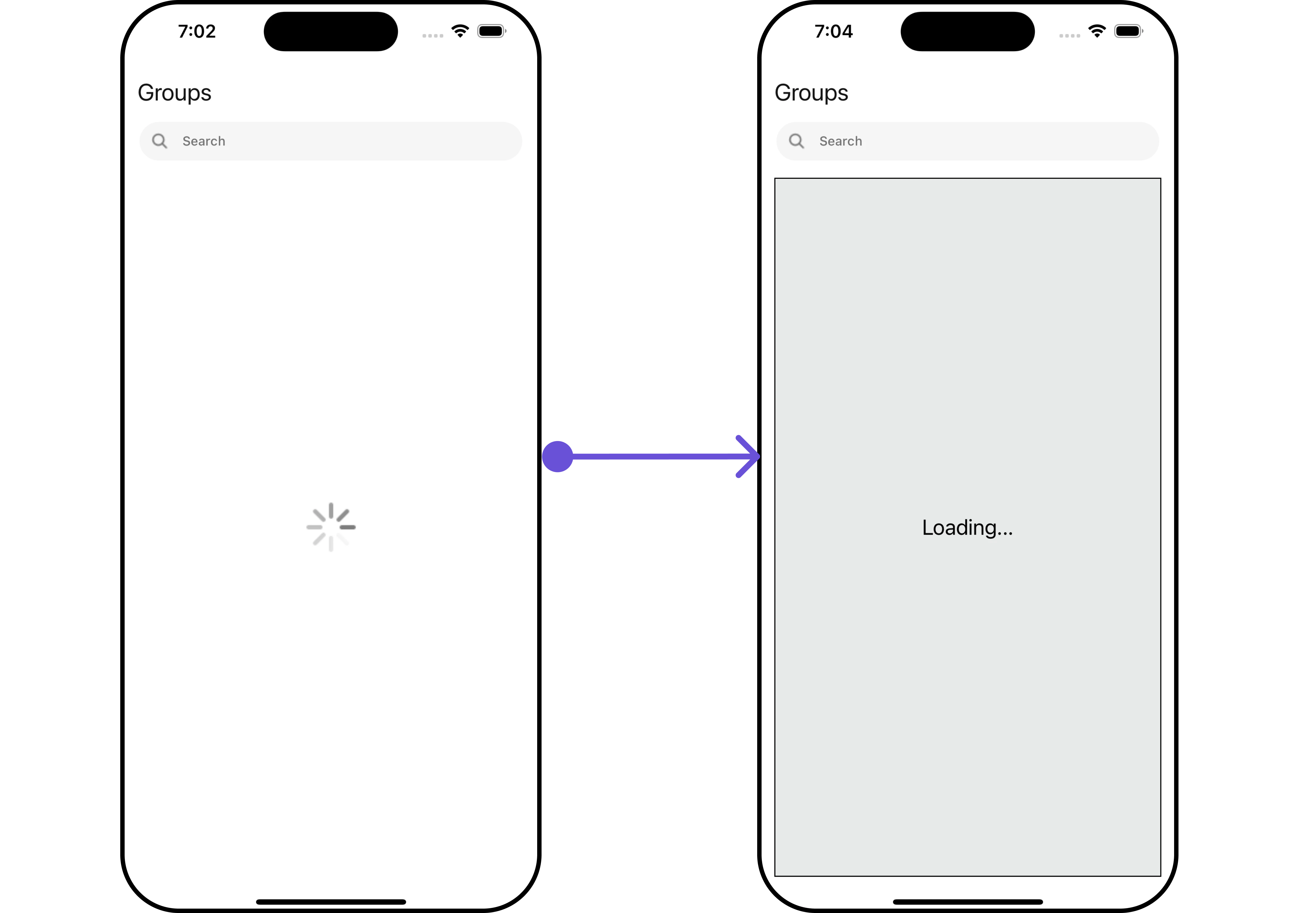

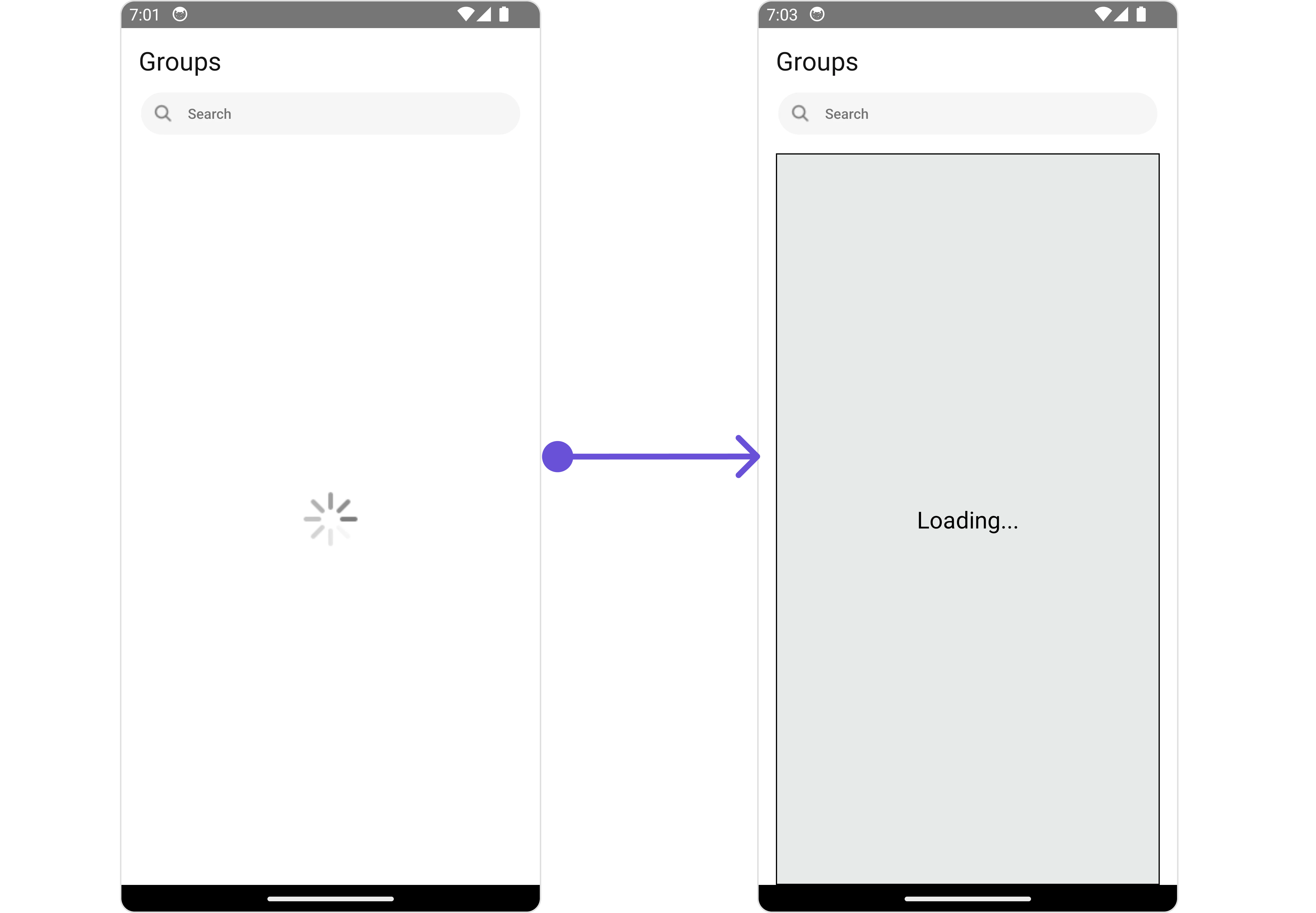

LoadingStateView

You can set a custom loader view using LoadingStateView to match the loading view of your app.

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatGroups } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const loadingViewStyle: StyleProp<ViewStyle> = {
    flex: 1,
    alignItems: "center",
    justifyContent: "center",
    padding: 10,
    borderColor: "black",
    borderWidth: 1,
    backgroundColor: "#E8EAE9",
  };

  const getLoadingStateView = () => {
    return (
      <View style={loadingViewStyle}>
        <Text style={{ fontSize: 20, color: "black" }}>Loading...</Text>
      </View>
    );
  };

  return <CometChatGroups LoadingStateView={getLoadingStateView} />;
}

Example

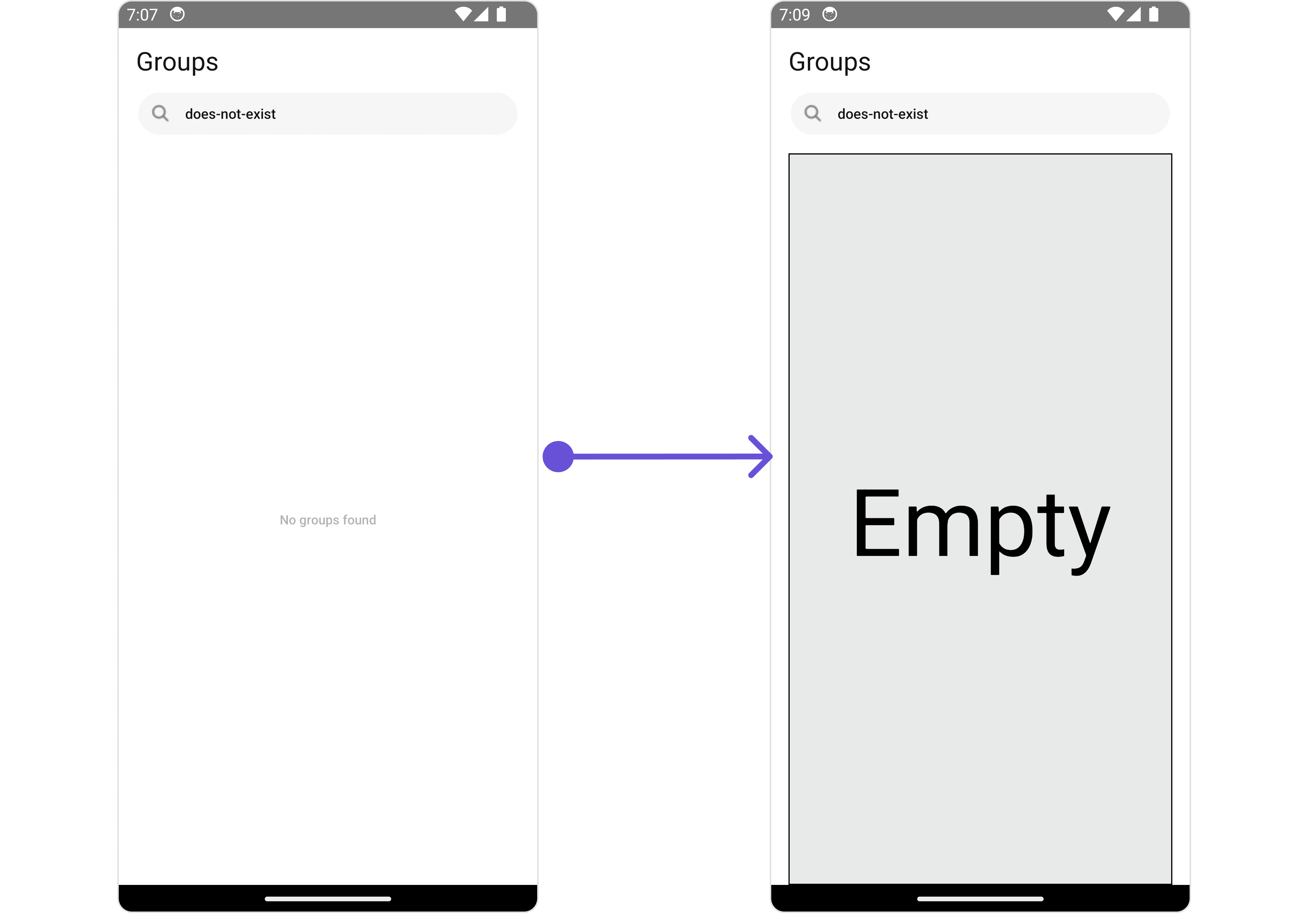

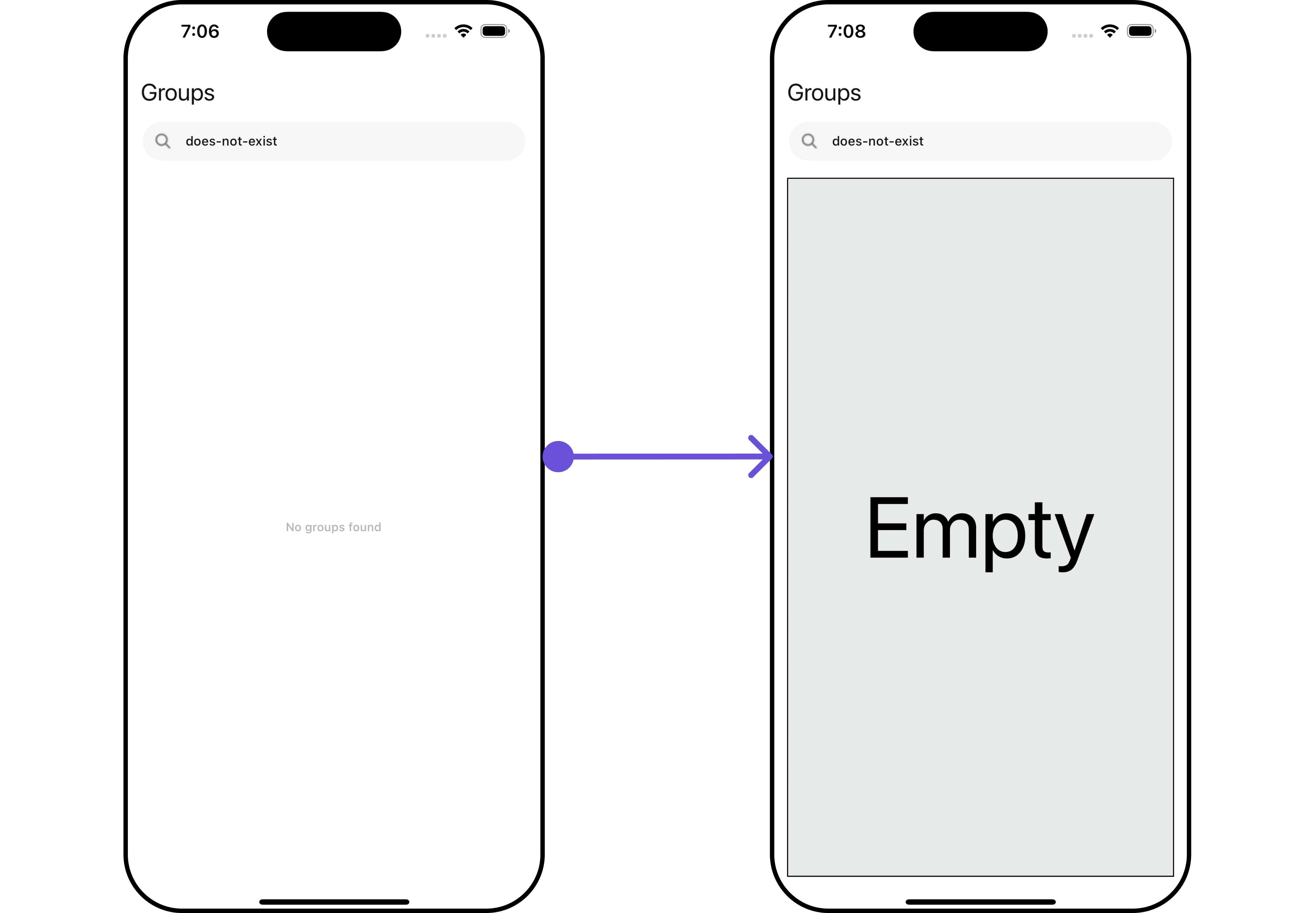

EmptyStateView

You can set a custom EmptyStateView using EmptyStateView prop to match the empty view of your app.


import {CometChat} from '@cometchat/chat-sdk-react-native';
import { CometChatGroups } from '@cometchat/chat-uikit-react-native';

function App(): React.JSX.Element {

const emptyViewStyle: StyleProp<ViewStyle> = {
flex: 1,
alignItems: 'center',
justifyContent: 'center',
padding: 10,
borderColor: 'black',
borderWidth: 1,
backgroundColor: '#E8EAE9',
};

const getEmptyStateView = () => {
return (
<View style={emptyViewStyle}>
<Text style={{fontSize: 80, color: "black"}}>Empty</Text>
</View>
);
};

//use a keyword that does not exist so that empty state view gets rendered
const searchRequestBuilder = new CometChat.GroupsRequestBuilder().setLimit(10).setSearchKeyword('does-not-exist');

return (
<CometChatGroups
      searchRequestBuilder={searchRequestBuilder}
      EmptyStateView={getEmptyStateView}
  />
);
}

Example

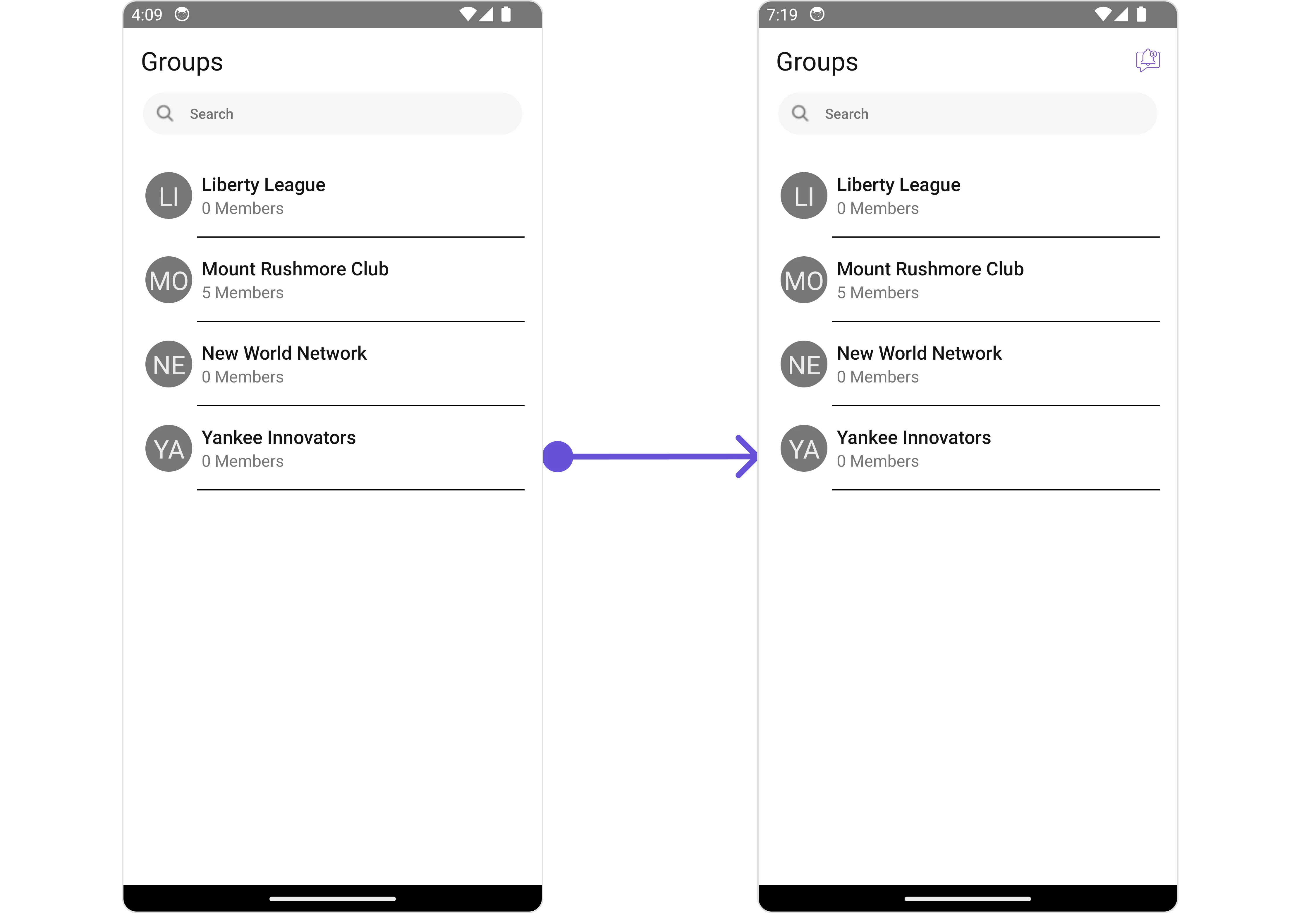

AppBarOptions

You can set Custom AppBarOptions to add more options to the Groups component.


import {CometChat} from '@cometchat/chat-sdk-react-native';
import { CometChatGroups } from '@cometchat/chat-uikit-react-native';
import Notification from './push-notification.png';

function App(): React.JSX.Element {

const styles = StyleSheet.create({
button: {
height: 20,
width: 20,
borderRadius: 0,
backgroundColor: 'transparent',
},
image: {
height: 20,
width: 20,
tintColor: '#7E57C2',
},
});

const getAppBarOptions = () => {
return (
<TouchableOpacity style={styles.button} onPress={() => {/_code_/}}>
<Image source={Notification} style={styles.image} />
</TouchableOpacity>
);
};

return (
<CometChatGroups
     AppBarOption={getAppBarOptions}
  />
);
}

Example

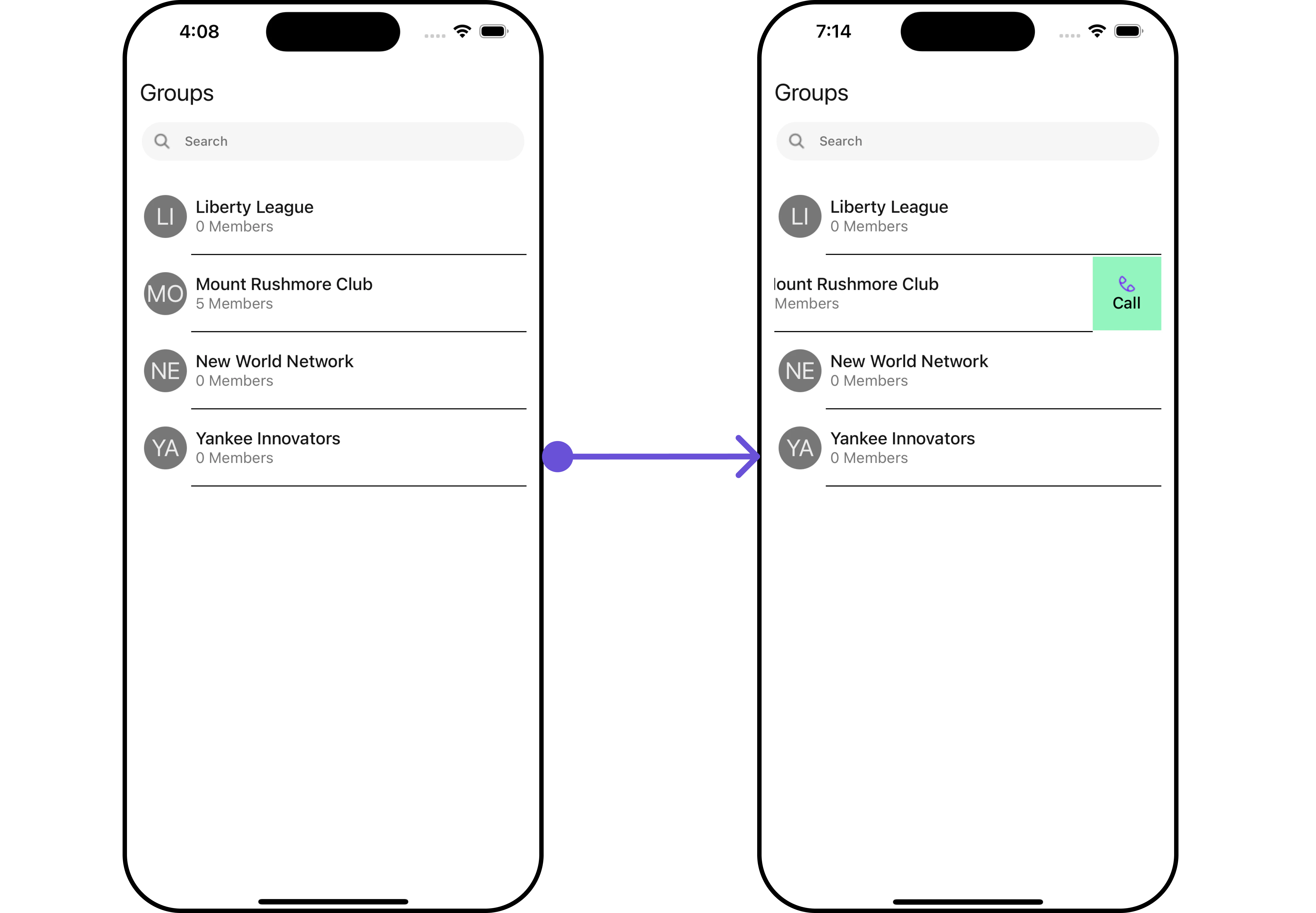

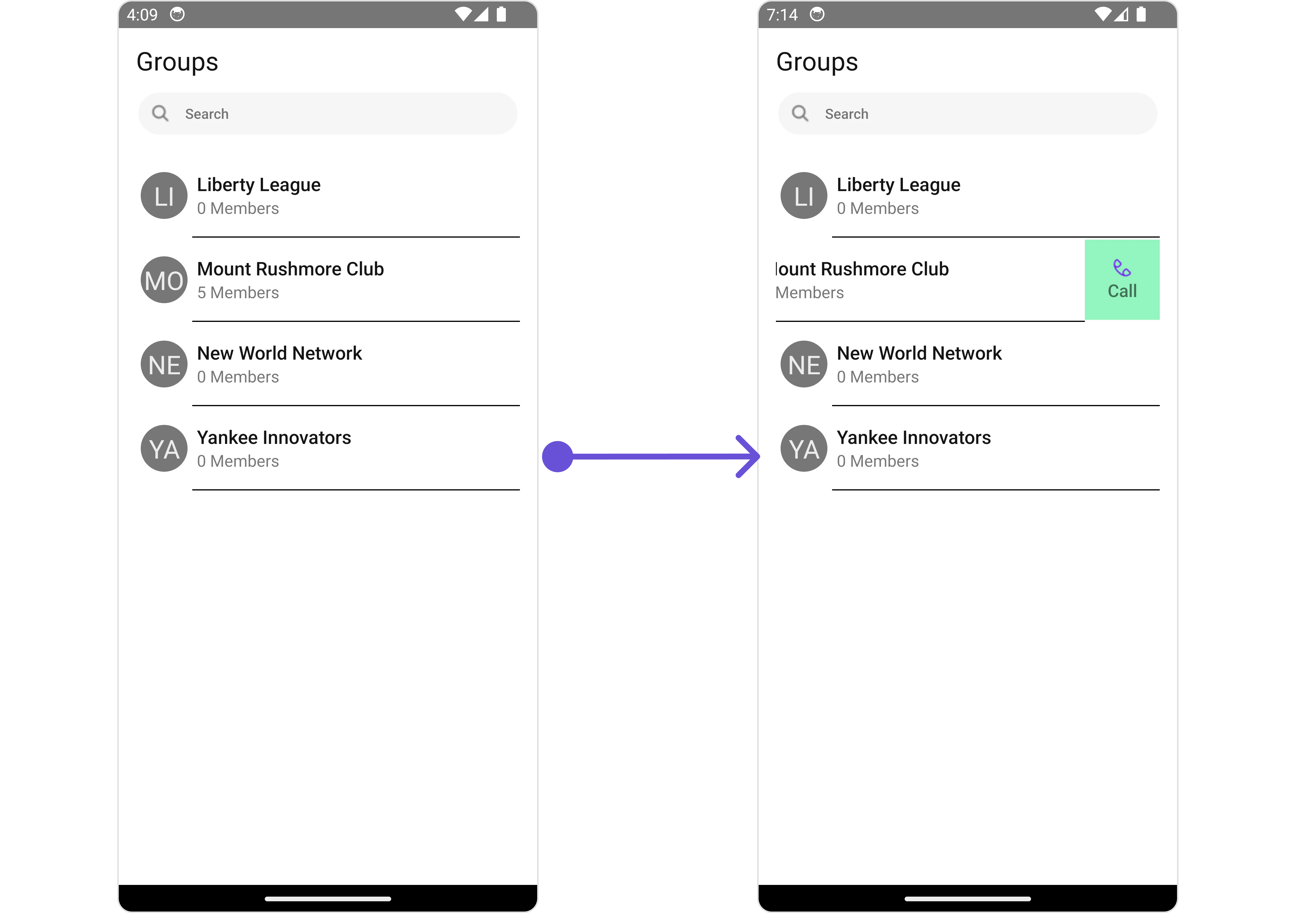

Swipe Options

You can set Custom Swipe options to the Groups component.


import {CometChat} from '@cometchat/chat-sdk-react-native';
import { CometChatGroups, CometChatOptions } from '@cometchat/chat-uikit-react-native';
import Call from './Call.png';

function App(): React.JSX.Element {

const getCustomOptions = (
user: CometChat.User,
) => {
const customOption: CometChatOptions = ({
id: "custom id",
title: "Call",
icon: Call,
iconTint: "#7316f5",
backgroundColor: "#93f5bf",
onPress: () => console.log("custom action"),
});

return (
  <CometChatGroups
      options={getCustomOptions}
  />

);
}

Example

​Usage

​Integration

​Actions

1. onSelection

2. onItemPress

3. onItemLongPress

4. onBack

5. onError

​Filters

1. GroupsRequestBuilder

2. SearchRequestBuilder

​Events

​Customization

​Style

1. Groups Style

2. Avatar Style

3. StatusIndicator Style

3. LisItem Style

​Functionality

​Advanced

​ListItemView

​SubtitleView

​LoadingStateView

​EmptyStateView

​AppBarOptions

​Swipe Options

Usage

Integration

Actions

Filters

Events

Customization

Style

Functionality

Advanced

ListItemView

SubtitleView

LoadingStateView

EmptyStateView

AppBarOptions

Swipe Options
